NMIT Arts & Media Block

Design Windows Nelson has worked closely with the redevelopment of Nelson Marlborough Institute of Technology (NMIT) including work on the accommodation block, library and most recently the Arts and Media building.

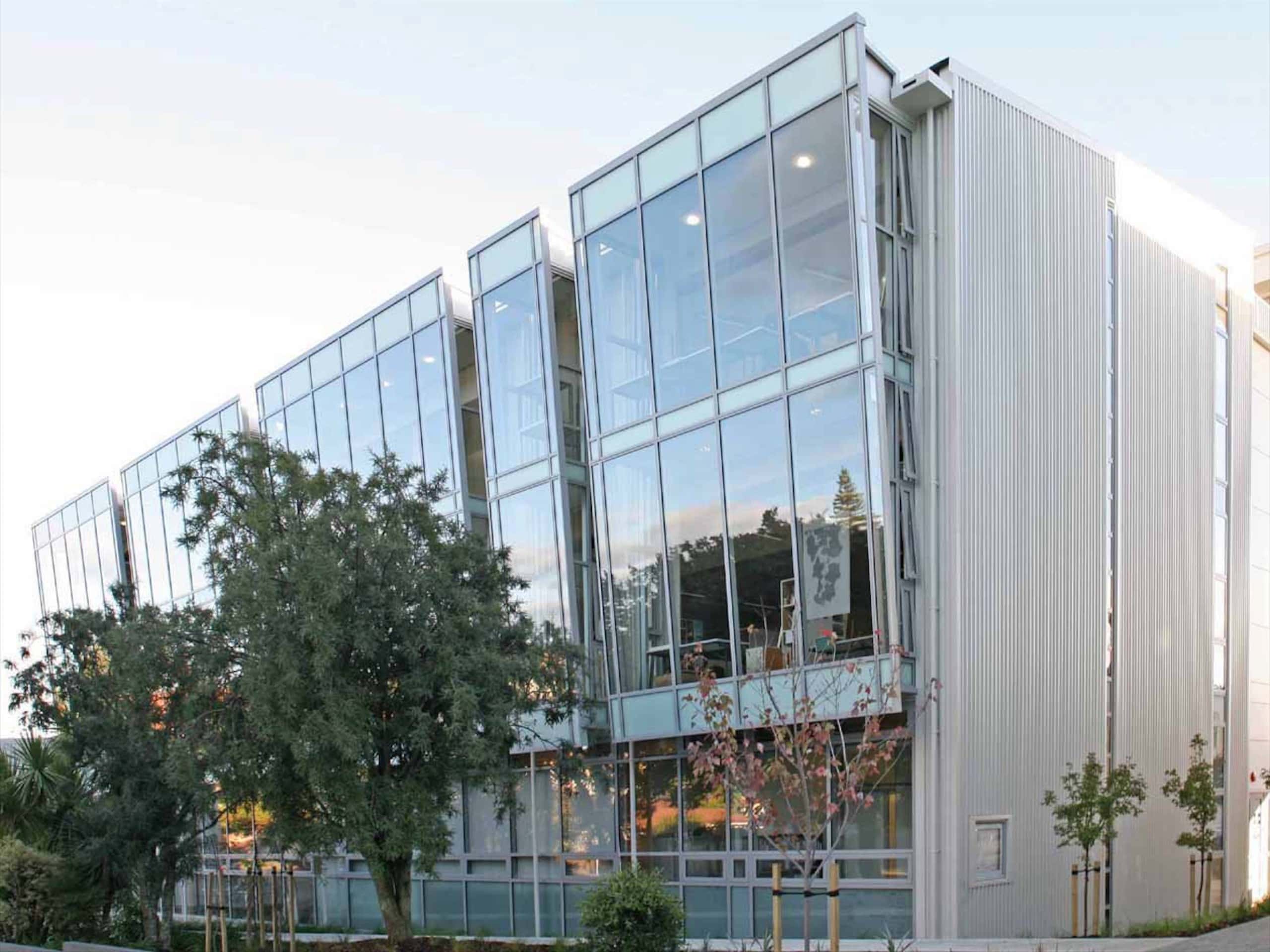

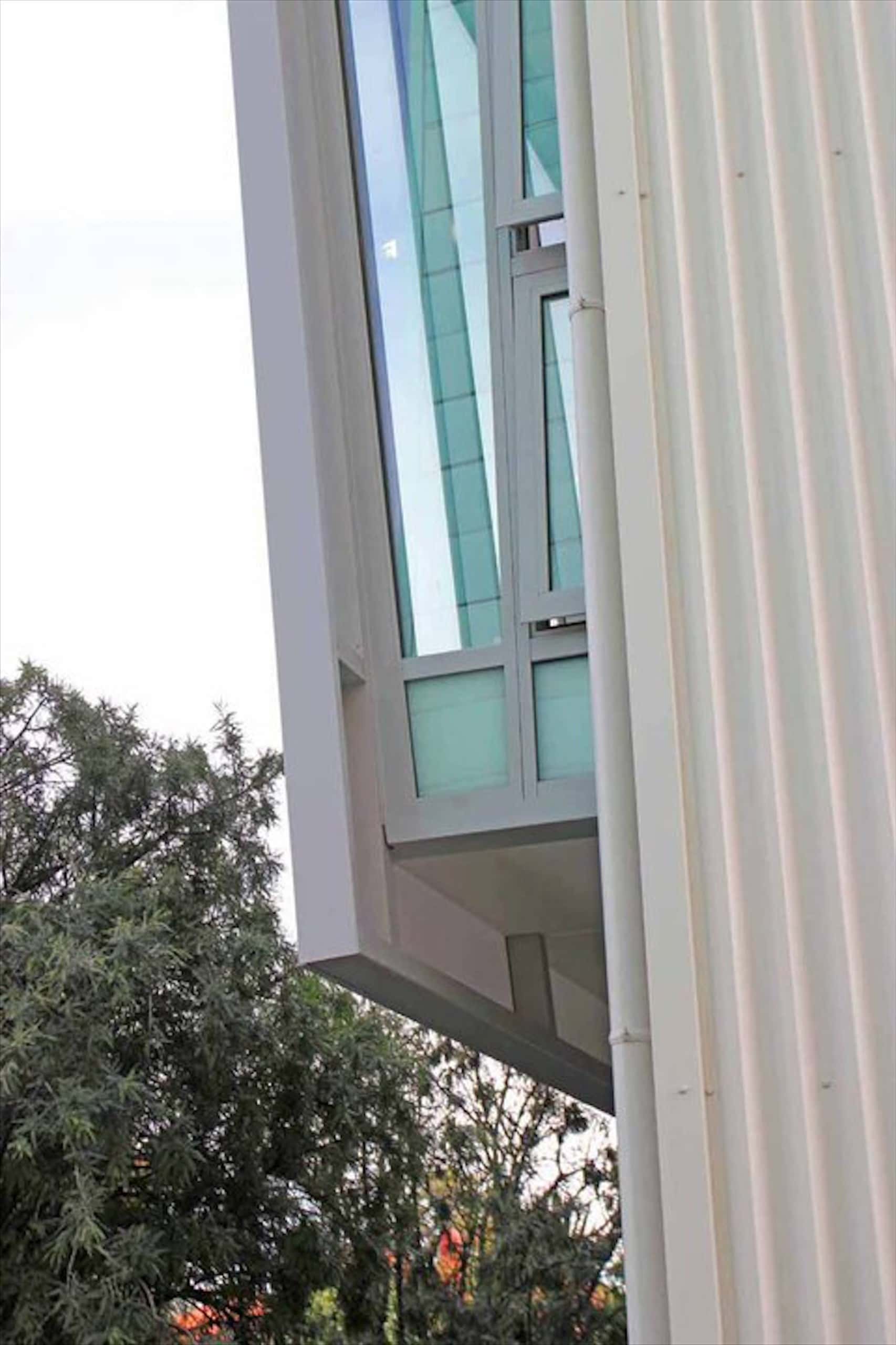

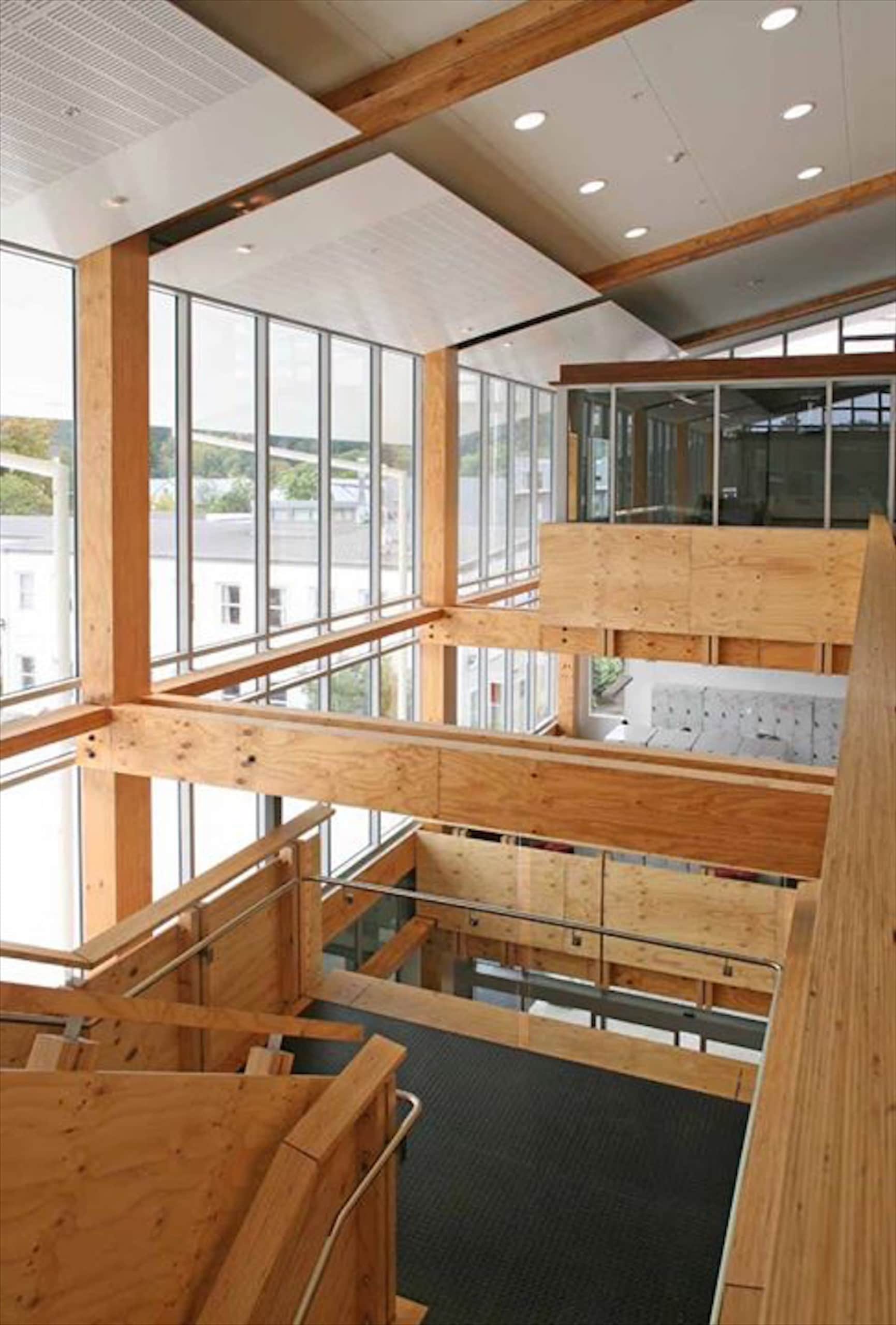

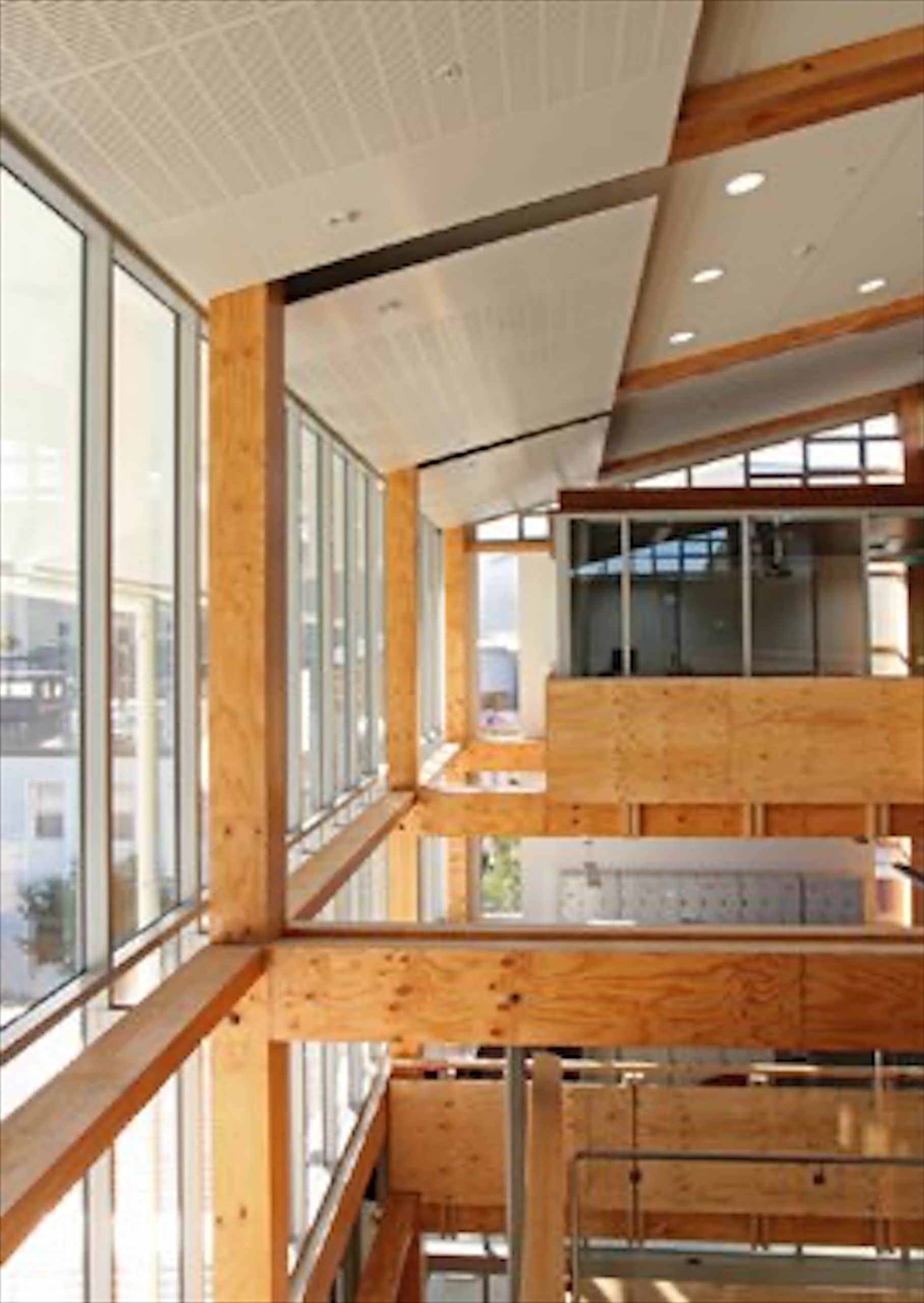

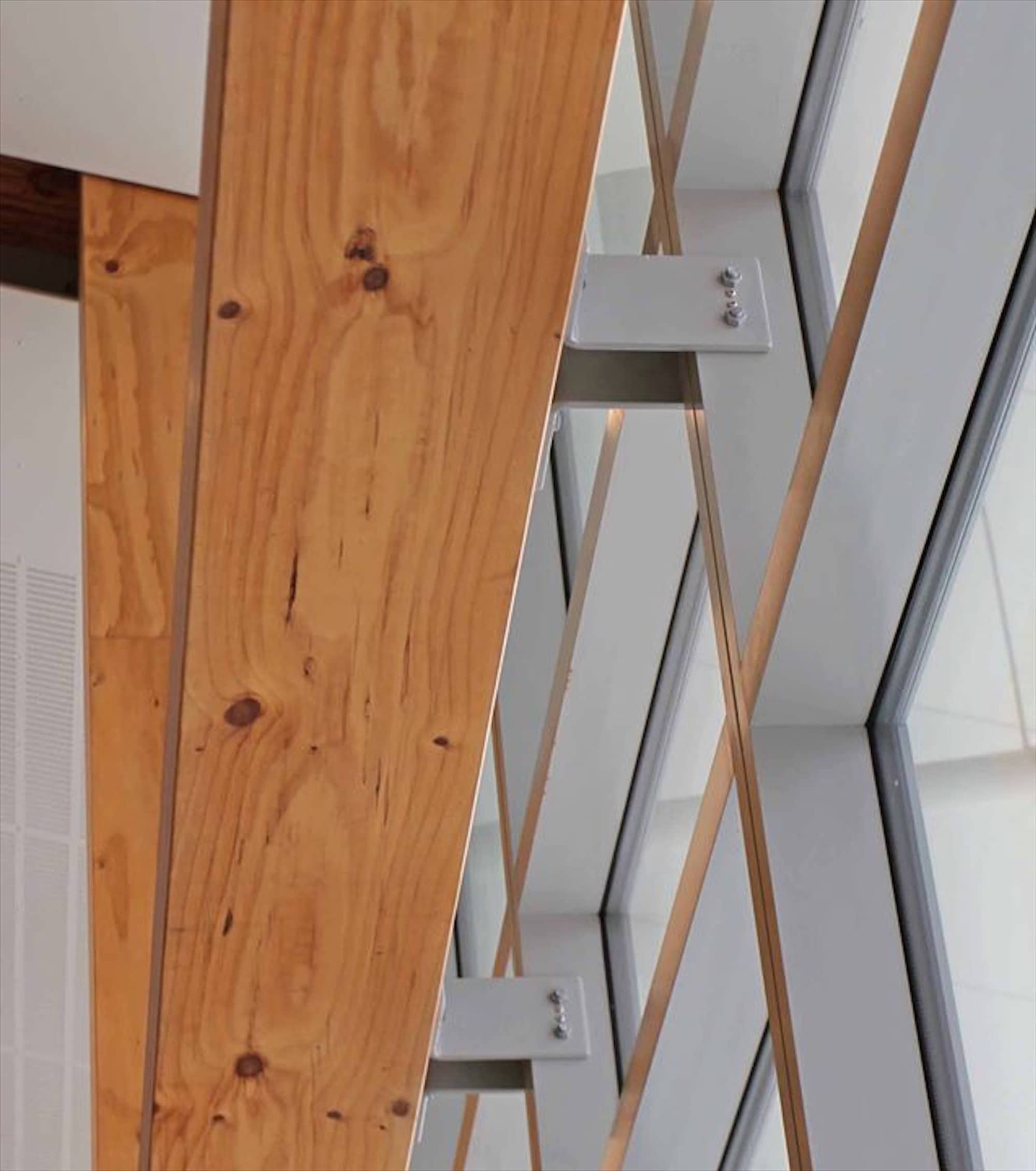

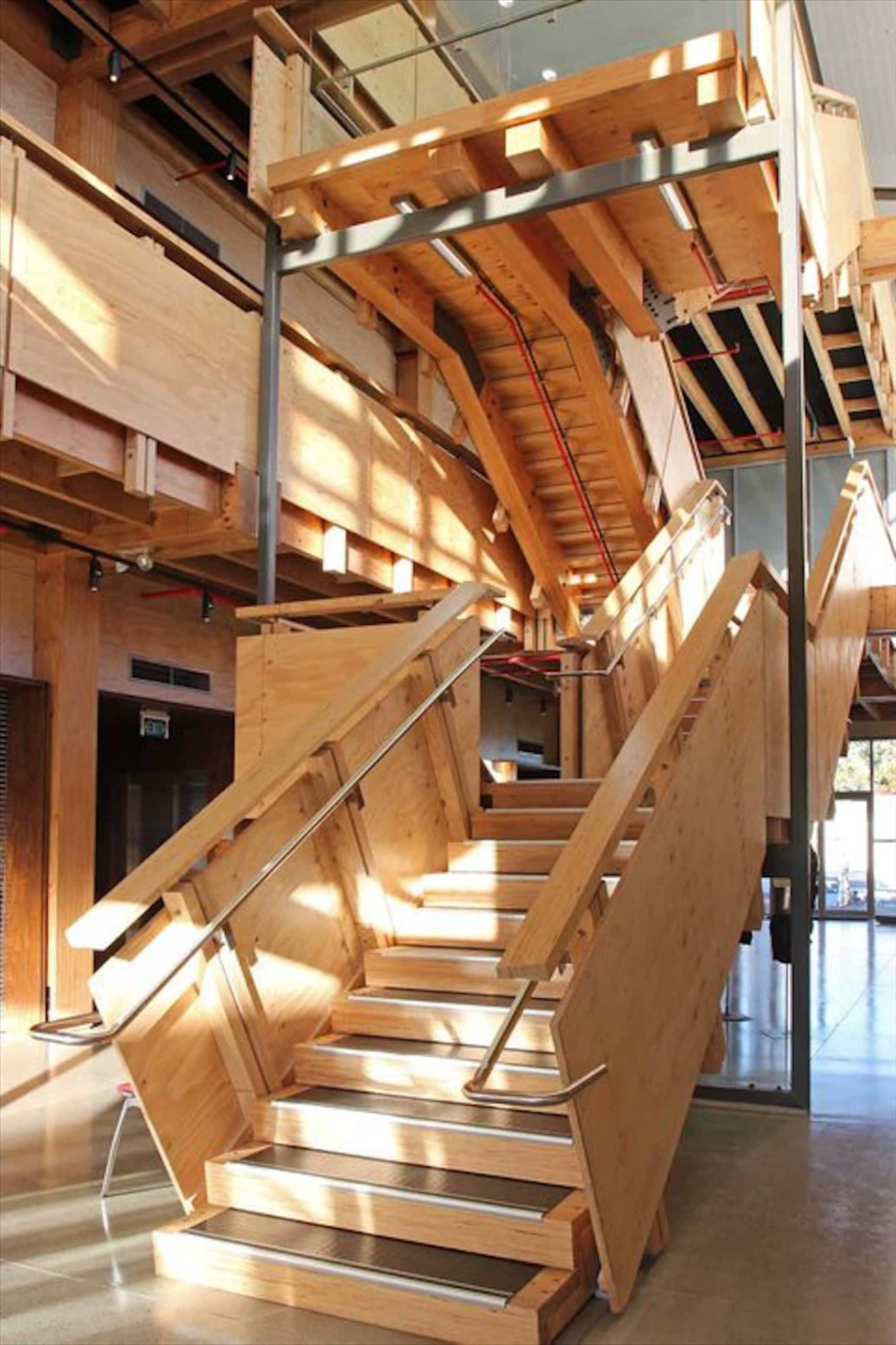

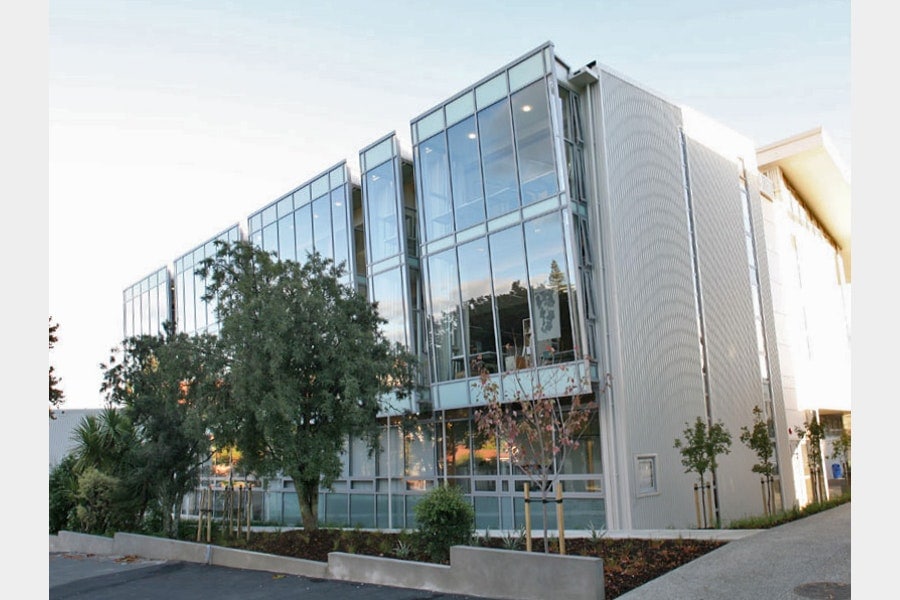

The Arts and Media building was designed by Irving Smith Jack Architects, of Nelson, with Arrow International as the project managers. Aurecon structural engineers also completed a ‘world first’ timber seismic design for the project with an engineering approach called ‘damage avoidance’ design. Design Windows Nelson, supplied and installed the Altherm 135mm Flushglaze seismic system on the main north and south elevations in large banks. On the north elevation, the windows were tied back to the LVL windbeams with special brackets custom-coloured in matching Silver Pearl powder coat. On the southern elevation the 135mm system leaned outwards on the upper floors, in what were called ‘Easel’ windows, referencing the arts theme of the building.

Design Windows, used a complex bracketing system to tie the window banks on the southern side back to the building. The windows projected beyond the roof and floor lines and beyond the side walls. Special internal box sections were needed inside transoms as extra strengthening members where the window system cantilevered out to the sides. Every bank of windows had a minimum of fifteen 10mm-thick steel brackets of varying designs, commissioned by Design Windows, to support the system.

A split transom half way up each bank meant that the traditional method of constructing the window system from the bottom up could not be used. Instead it was installed top down with one whole bank constructed on site as a test system to assure suitability. Design Windows had previously constructed a commercial façade with an outward lean (at the World of WearableArt pavilion in Nelson) but this was a simpler system that had its sill at ground level. Other window systems used on the NMIT Arts and Media building included 40mm windows, 100mm shopfront, 150mm seismic Structural Glaze, pivoting and sliding Magnum doors, and industrial louvres.

The Windows & Doors

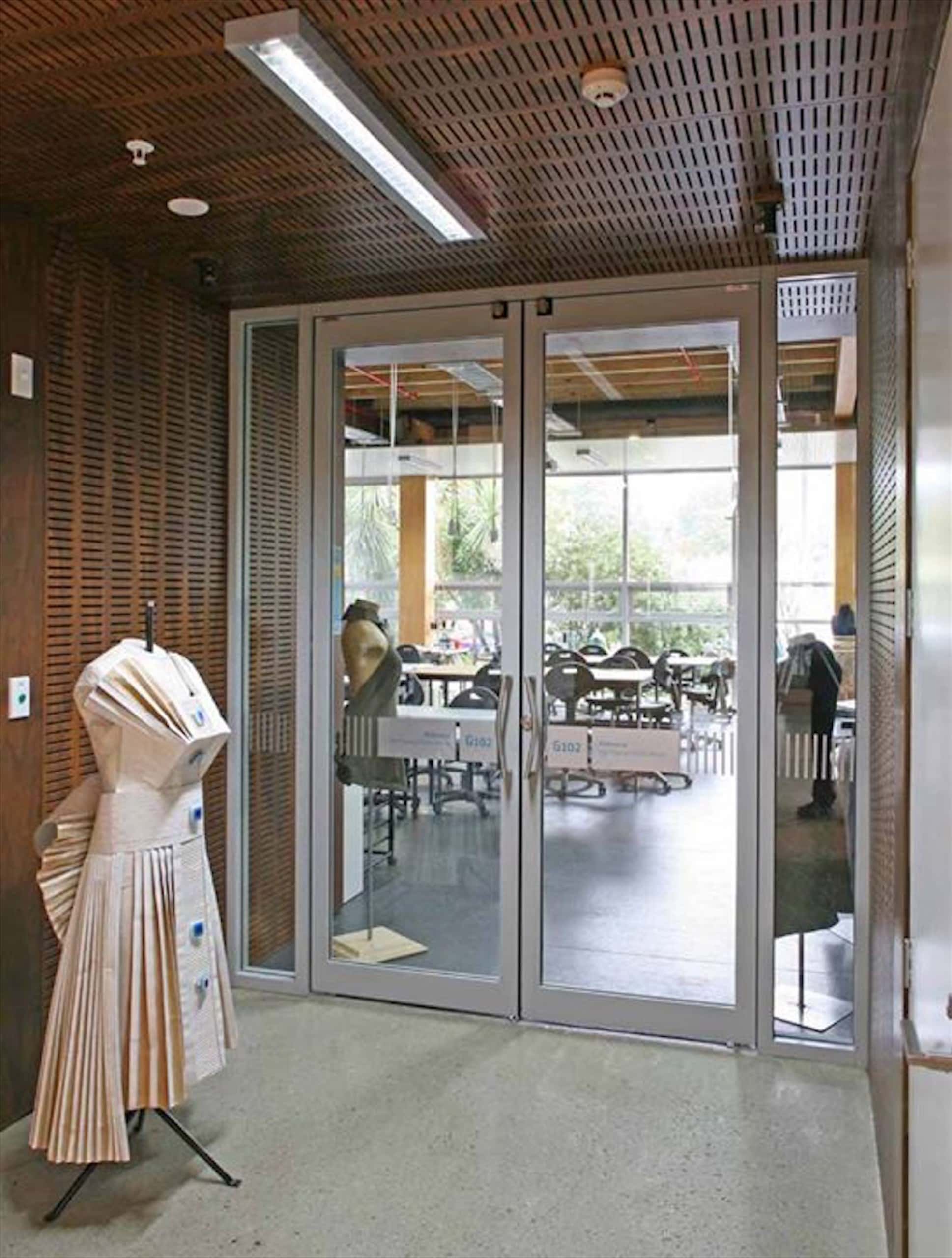

  • Altherm Commercial Magnum Doors

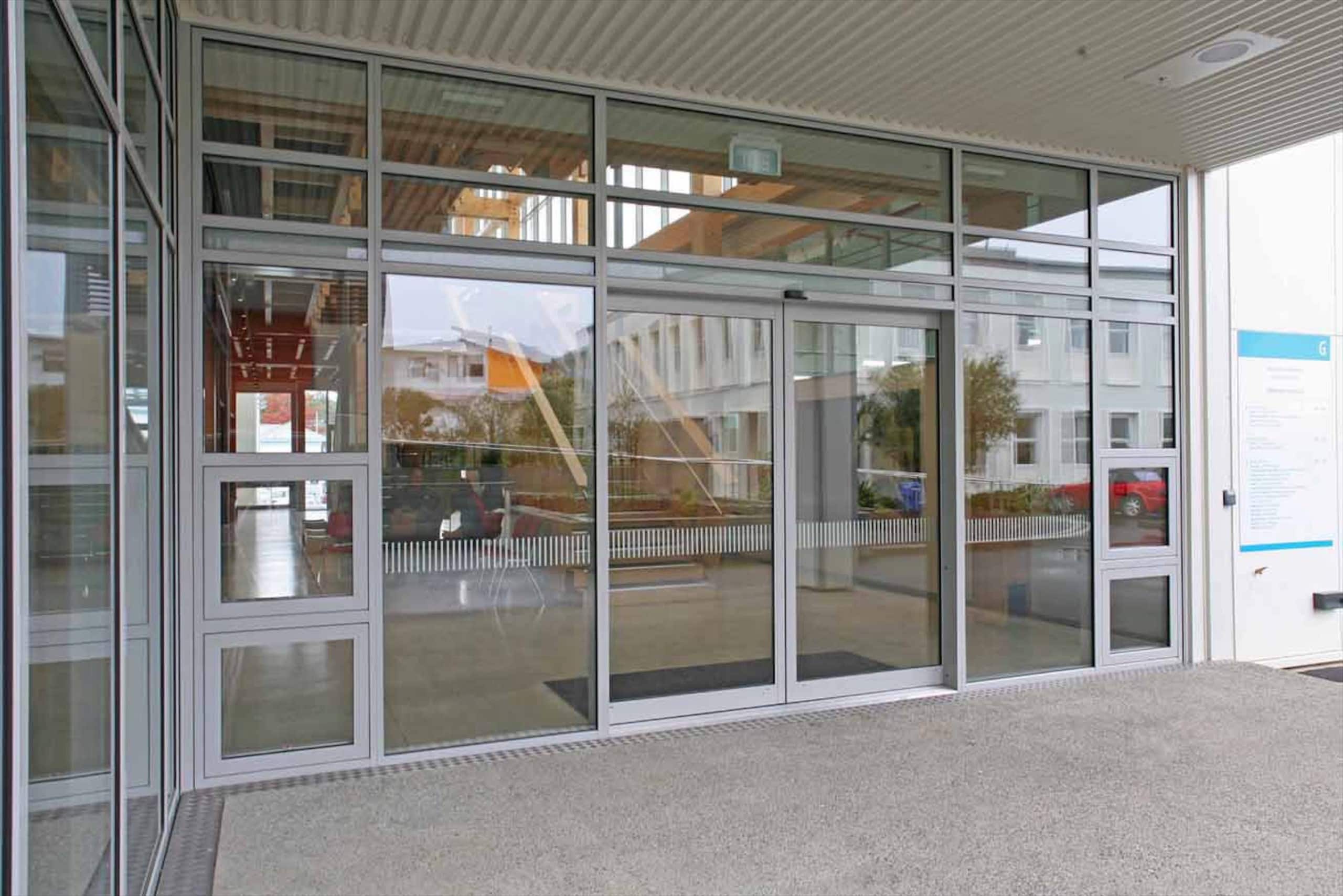

  • Altherm Commercial 100mm Shopfront
  • Altherm Commercial 135mm Flush Glaze System
  • Altherm Commercial 150mm Structural Glaze
Type: Commercial Location: Nelson Colour: Silver Pearl Joinery Type: Altherm Commercial, Commercial Window Series, Flushglaze, Magnum Commercial Doors, Shopfront, Structural Glaze
